68781500 - PT Coupling 1-1/2 inch Part D x 1-1/2 inch FNPT Ductile Iron D-Coupler - LJI Part: 68781500
SKU
68781500
SKU
68781500
$44.83
| Brand | : Pt Coupling |
|---|---|
| Size | : 1-1/2 Inch |
| Type | : Part D |
| Material | : Ductile Iron |
| Vendor Number | : 68781500 |
Short Description:

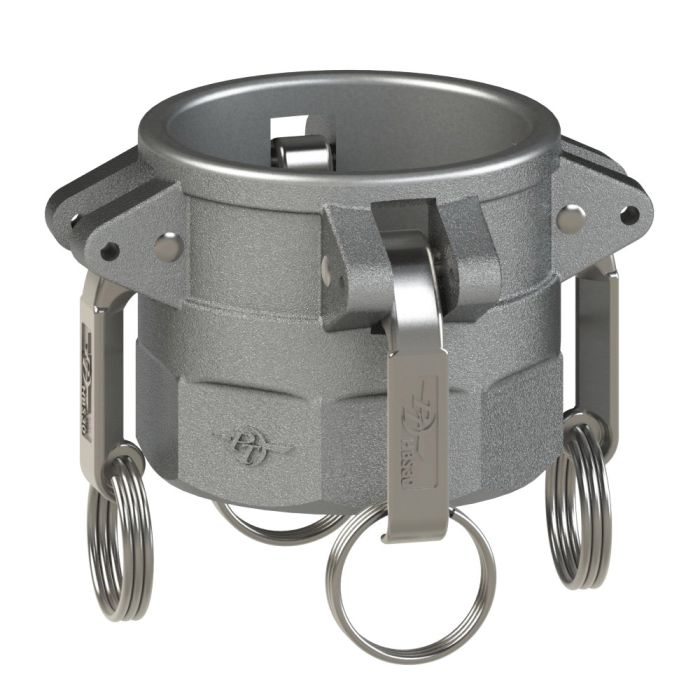

The PT Coupling 68781500 is a 1.5-inch heavy-duty cam and groove coupler with a Type D connection on one end and a 1.5-inch FNPT (Female National Pipe Thread) connection on the other. Constructed from durable ductile iron, it measures 1.5 inches in inner diameter, 3.56 inches in outer diameter, and 2.8 inches in length. The coupler features two HBS 300 Series Stainless Steel cam arms that extend to 7.16 inches in outer diameter, providing a secure and reliable lock. With a maximum operating pressure of 250 psi, it is well-suited for demanding applications including construction, oil and gas, mining, steel processing, and transportation.
This PT Coupling part is proudly made in the USA.
Details
- Weight: 2.844 pounds
- Body Material: Ductile Iron
- Maximum Operating Pressure: 250 psi
- Inner Diameter (ID): 1.5 inches
- Outer Diameter (OD): 3.56 inches
- Overall Length (OAL): 2.8 inches
- Extended Cam Arms Diameter: 7.16 inches
- Connection 1: 1.5-inch Type D
- Connection 2: 1.5-inch FNPT
- Cam Arms: (2) HBS 300 Series Stainless Steel
