CF1200125 - PT Coupling 2-1/2 inch Part A x 2-1/2 inch FNPT Brass A-Adapter - LJI Part: CF1200125
SKU
CF1200125
SKU
CF1200125
$32.19
| Brand | : Pt Coupling |
|---|---|
| Size | : 2-1/2 Inch |
| Type | : Part A |
| Material | : Brass |
| Vendor Number | : CF1200125 |

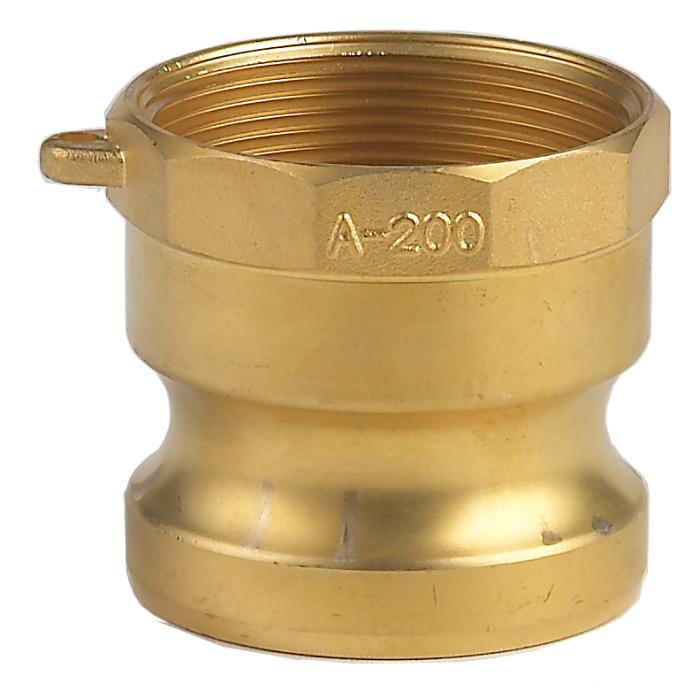

PT Coupling Part A adapter, 2-1/2", brass. Makes and breaks a male adapter x female NPT connection by hand. Rated to 150 psi at this size.
The part a adapter is the male adapter x female NPT half of a cam and groove pair. In 2-1/2" and brass, it covers most of what a transfer line asks for.
- Size: 2-1/2"
- Type: Part A adapter
- Connection: male adapter x female NPT
- Material: brass
- Maximum allowable working pressure: 150 psi
- Pressure rating is based on Buna-N seals below 100°F
- Cast, machined and assembled in the USA
- Assembled with solid pins
- Complies with Commercial Item Description A-A-59326D for quick disconnect couplings
- Not rated for compressed gas service, including air and steam
