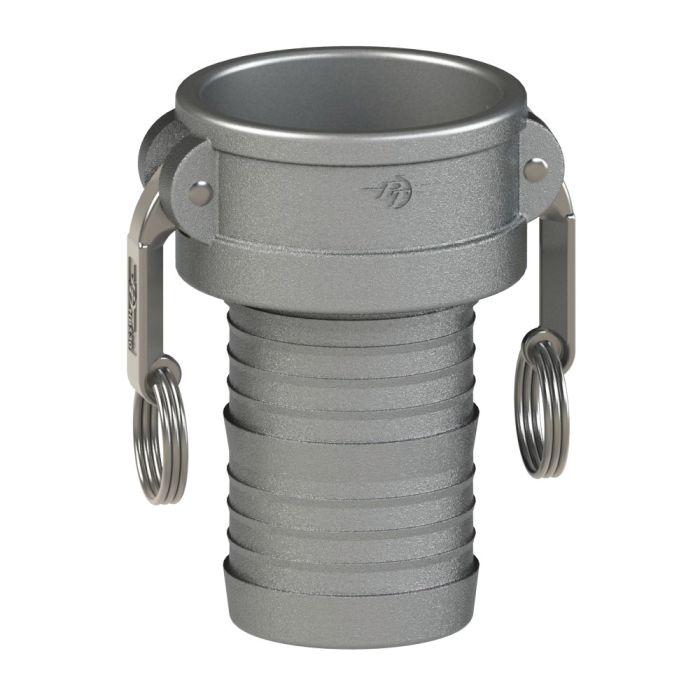

1400325 - PT Coupling 2-1/2 inch Part C x 2-1/2 inch hose Shank 316 Stainless Steel C-Coupler - LJI Part: 1400325
| Brand | : Pt Coupling |
|---|---|
| Size | : 2-1/2 Inch |
| Type | : Part C |
| Material | : Stainless Steel |
| Vendor Number | : 1400325 |
The PT Coupling 1400325 is a 2.5-inch cam and groove coupler with a Type C connection on one end and a 2.5-inch Hose Shank connection on the other. Constructed from 316 Stainless Steel, it measures 2.16 inches in inner diameter, 4.43 inches in outer diameter, and 5.93 inches in length. The coupler features HBS 300 Series Stainless Steel cam arms with a 2.18-inch exposed length and an extended cam arms diameter of 8.03 inches. With a maximum operating pressure of 200 psi, it is compatible with salt water, waste water, many chemicals, hydraulic oil, and coolants, making it well-suited for agriculture, chemical, construction, oil and gas, mining, steel processing, transportation, and railroad applications.
This PT Coupling part is proudly made in the USA.
- Weight: 3.326 pounds
- Body Material: 316 Stainless Steel
- Maximum Operating Pressure: 200 psi
- Inner Diameter (ID): 2.16 inches
- Outer Diameter (OD): 4.43 inches
- Overall Length (OAL): 5.93 inches
- Exposed Length (EL): 2.18 inches
- Extended Cam Arms Diameter: 8.03 inches
- Connection 1: 2.5-inch Type C
- Connection 2: 2.5-inch Hose Shank
- Cam Arms: HBS 300 Series Stainless Steel
