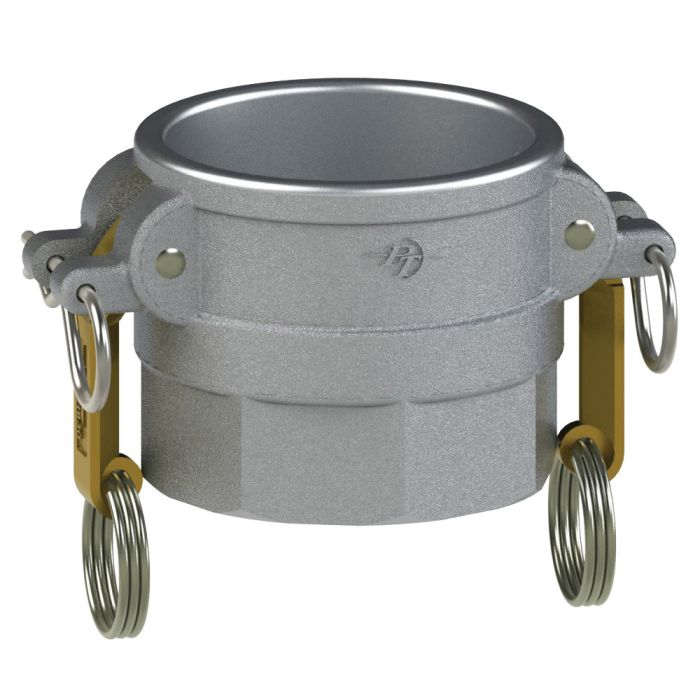

1070425SL - PT Coupling 2-1/2 inch Part D x 2-1/2 inch FNPT Aluminum Sta-Lok D-Coupler - LJI Part: 1070425SL
SKU
1070425SL
SKU
1070425SL
$41.34
| Brand | : Pt Coupling |
|---|---|
| Size | : 2-1/2 Inch |
| Type | : Part D |
| Material | : Aluminum |
| Vendor Number | : 1070425SL |
Short Description:
The PT Coupling Coupler is a reliable component for fluid transfer applications. It features a 2-1/2 inch Type D connection on one end and a 2-1/2 inch FNPT (Female National Pipe Thread) connection on the other. Constructed from lightweight and durable aluminum this coupler has an inner diameter of 2.38 inches an outer diameter of 4.43 inches and a length of 3.4 inches. It can operate at a maximum pressure of 200 psi. Additional features include an 8.03-inch outer diameter when the cam arms are extended with cam arms made from hB Brass ensuring secure and reliable connections for fluid transfer.
This PT Coupling part is proudly made in the USA.
Details
- Body Material: Aluminum
- Maximum Operating Pressure: 200 psi
- Inner Diameter (ID): 2.38 inches
- Outer Diameter (OD): 4.43 inches
- Overall Length (OAL): 3.4 inches
- Extended Cam Arms Diameter: 8.03 inches
- Connection 1: 2.5-inch Type D
- Connection 2: 2.5-inch FNPT
- Cam Arms: HB Brass (Sta-Lok)
- Standard Approvals: Coast Guard ASTM 1122-87
