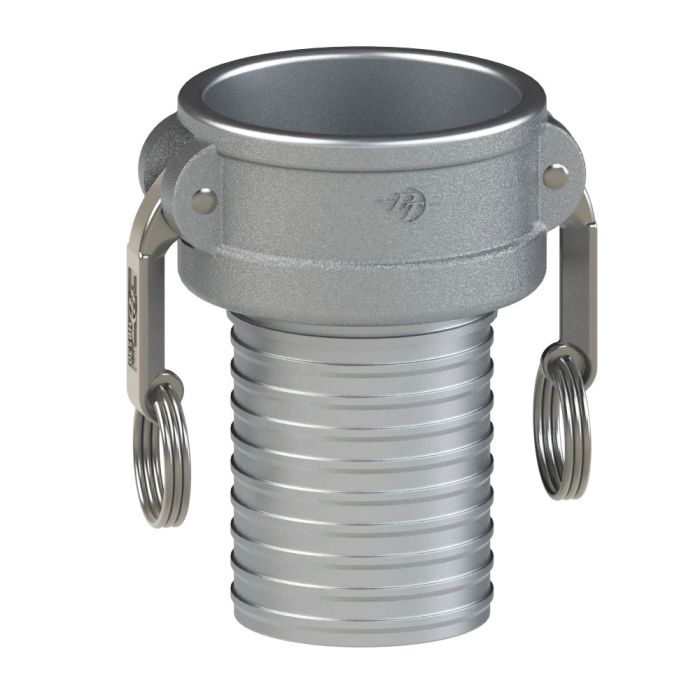

10003201 - PT Coupling 2 inch Part C x 2 inch hose Shank Aluminum C-Coupler - LJI Part: 10003201
| Brand | : Pt Coupling |
|---|---|
| Size | : 2 Inch |
| Type | : Part C |
| Material | : Aluminum |
| Vendor Number | : 10003201 |
The PT Coupling 10003201 is a 2-inch low profile cam and groove coupler with a Type C connection on one end and a 2-inch Hose Shank connection on the other. Constructed from lightweight aluminum, it measures 1.71 inches in inner diameter, 3.94 inches in outer diameter, and 5.53 inches in length. The coupler features HBS 300 Series Stainless Steel low profile cam arms with a 2.15-inch exposed length and an extended cam arms diameter of 7.54 inches. With a maximum operating pressure of 250 psi, it is compatible with water, hydraulic oil, coolants, gasoline, and petroleum products, and is suited for agriculture, construction, oil and gas, mining, transportation, and railroad applications.
This PT Coupling part is proudly made in the USA.
- Weight: 1.049 pounds
- Body Material: Aluminum
- Maximum Operating Pressure: 250 psi
- Inner Diameter (ID): 1.71 inches
- Outer Diameter (OD): 3.94 inches
- Overall Length (OAL): 5.53 inches
- Exposed Length (EL): 2.15 inches
- Extended Cam Arms Diameter: 7.54 inches
- Connection 1: 2-inch Type C
- Connection 2: 2-inch Hose Shank
- Cam Arms: HBS 300 Series Stainless Steel (Low Profile)
