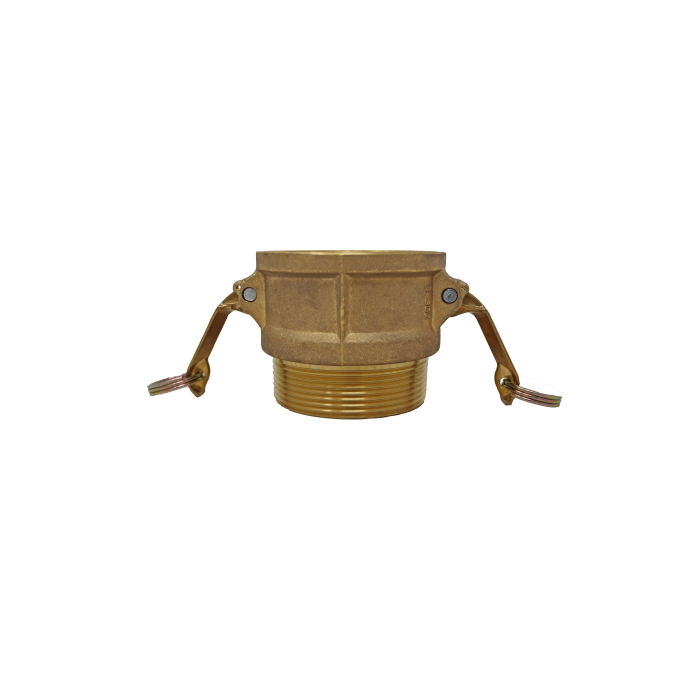

CF1200207 - PT Coupling 3/4 inch Part B x 3/4 inch MNPT Brass B-Coupler - LJI Part: CF1200207
SKU
CF1200207
SKU
CF1200207
$17.57
| Brand | : Pt Coupling |
|---|---|
| Size | : 3/4 Inch |
| Type | : Part B |
| Material | : Brass |
| Vendor Number | : CF1200207 |
Short Description:
The PT Coupling CF1200207 is a 0.75-inch cam and groove coupler with a Type B connection on one end and a 0.75-inch MNPT (Male National Pipe Thread) connection on the other. Constructed from brass, it measures 0.78 inches in inner diameter, 2.11 inches in outer diameter, and 2.1 inches in length, with a 1.25-inch exposed length and an extended cam arms diameter of 4.51 inches. It is compatible with water, hydraulic oil, coolants, gasoline, and petroleum products, and is suited for agriculture, construction, oil and gas, mining, steel processing, and railroad applications.
Details
- Body Material: Brass
- Inner Diameter (ID): 0.78 inches
- Outer Diameter (OD): 2.11 inches
- Overall Length (OAL): 2.1 inches
- Exposed Length (EL): 1.25 inches
- Extended Cam Arms Diameter: 4.51 inches
- Connection 1: 0.75-inch Type B
- Connection 2: 0.75-inch MNPT
