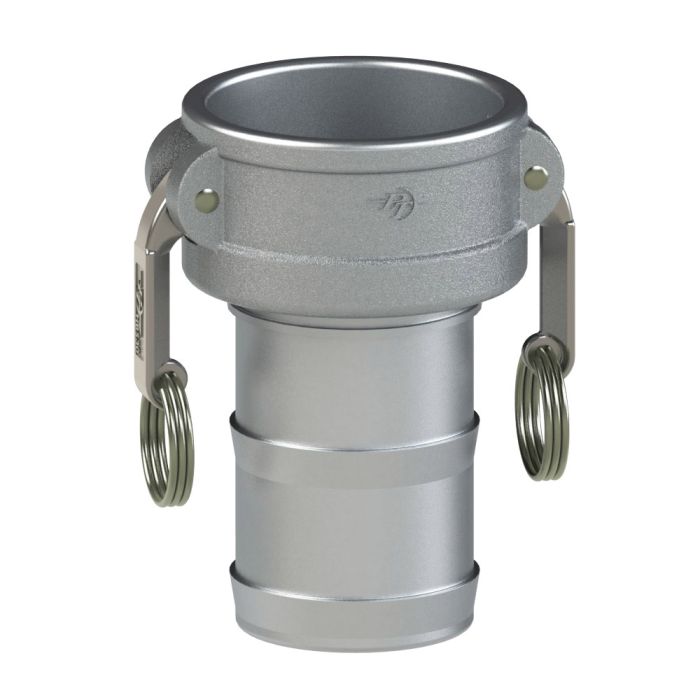

1000330US - PT Coupling 3 inch Part C x 3 inch hose Shank Aluminum C-Coupler - LJI Part: 1000330US

The part c coupler is the coupler x hose shank half of a cam and groove pair. In 3" and aluminum, it covers most of what a transfer line asks for. The multi-barbed shank takes a center punch clamp or an interlocked ferrule or sleeve.

• Size: 3"
• Type: Part C coupler
• Connection: coupler x hose shank
• Material: aluminum
• Maximum allowable working pressure: 125 psi
• Pressure rating is based on Buna-N seals below 100°F
• Multi-barbed hose shank works with center punch clamps or an interlocked ferrule or sleeve
• Cast, machined and assembled in the USA
• Assembled with solid pins
• Complies with Commercial Item Description A-A-59326D for quick disconnect couplings
• Not rated for compressed gas service, including air and steam
