1000440SL - PT Coupling 4 inch Part D x 4 inch FNPT Aluminum Sta-Lok D-Coupler - LJI Part: 1000440SL
SKU
1000440SL
SKU
1000440SL
$62.96
| Brand | : Pt Coupling |
|---|---|
| Size | : 4 Inch |
| Type | : Part D |
| Material | : Aluminum |
| Vendor Number | : 1000440SL |
Short Description:

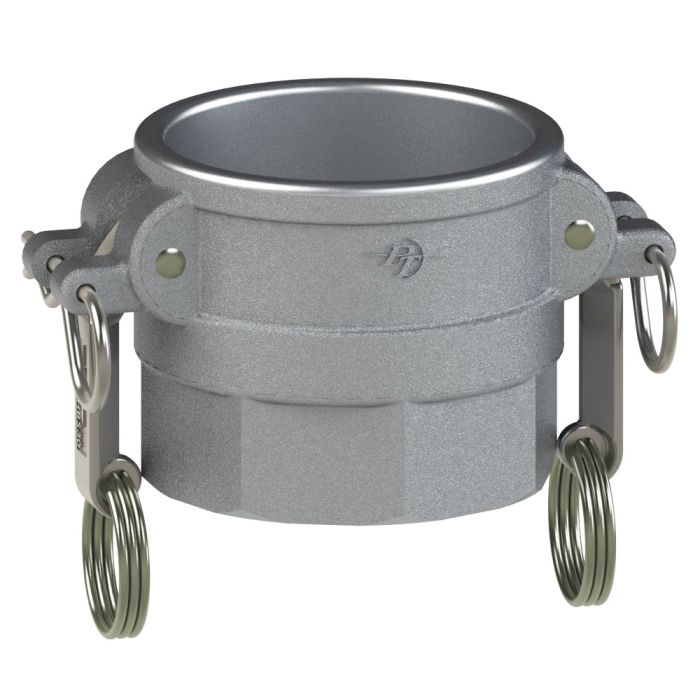

The PT Coupling Coupler is a durable and efficient component for fluid transfer applications. It features a 4-inch Type D connection on one end and a 4-inch FNPT (Female National Pipe Thread) connection on the other. Constructed from lightweight and durable aluminum this coupler has an inner diameter of 3.6 inches an outer diameter of 6.56 inches and a length of 3.9 inches. It can operate at a maximum pressure of 150 psi. Additional features include a 10.66-inch outer diameter when the cam arms are extended with cam arms made from hBS 300 Series Stainless Steel ensuring secure and reliable connections for fluid transfer.
This PT Coupling part is proudly made in the USA.
Details
- Body Material: Aluminum
- Maximum Operating Pressure: 150 psi
- Inner Diameter (ID): 3.6 inches
- Outer Diameter (OD): 6.56 inches
- Overall Length (OAL): 3.9 inches
- Extended Cam Arms Diameter: 10.66 inches
- Connection 1: 4-inch Type D
- Connection 2: 4-inch FNPT
- Cam Arms: HBS 300 Series Stainless Steel (Sta-Lok)
- Standard Approvals: Coast Guard ASTM 1122-87
