1070450 - PT Coupling 5 inch Part D x 5 inch FNPT Aluminum D-Coupler - LJI Part: 1070450
SKU
1070450
SKU
1070450
$89.20
| Brand | : Pt Coupling |
|---|---|
| Size | : 5 Inch |
| Type | : Part D |
| Material | : Aluminum |
| Vendor Number | : 1070450 |
Short Description:

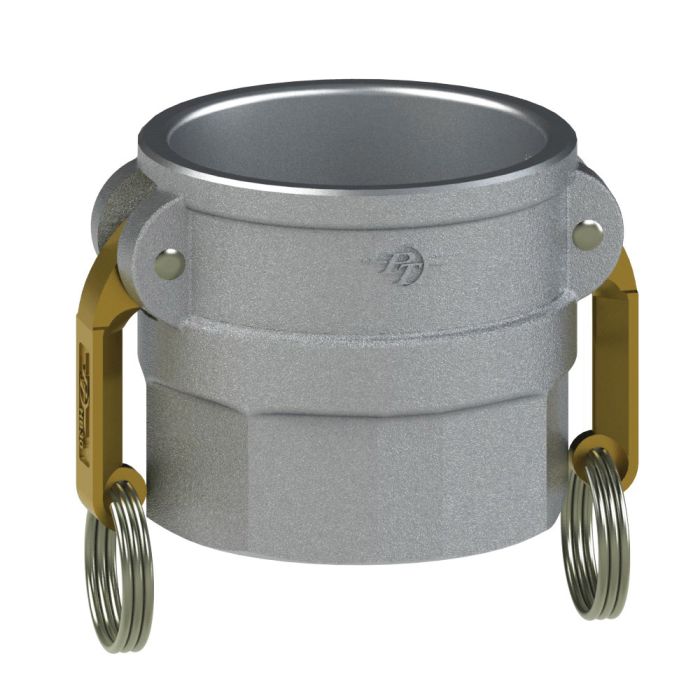

The PT Coupling Coupler is a robust aluminum connector designed for 5-inch pipes. It features a Type D connection on one end and a Female NPT (FNPT) connection on the other. With a 4.5-inch inner diameter 7.57-inch outer diameter and 4.1-inch length it can handle a maximum operating pressure of 75 psi. This coupler includes 11.67-inch extended cam arms made of hB Brass and has a weight of 3.382 pounds. It's a reliable and sturdy choice for various pipe connections requiring durability although it's important to note the lower operating pressure compared to some other couplers.,
This PT Coupling part is proudly made in the USA.
Details
The PT Coupling Coupler is a robust aluminum connector designed for 5-inch pipes. It features a Type D connection on one end and a Female NPT (FNPT) connection on the other. With a 4.5-inch inner diameter 7.57-inch outer diameter and 4.1-inch length it can handle a maximum operating pressure of 75 psi. This coupler includes 11.67-inch extended cam arms made of hB Brass and has a weight of 3.382 pounds. It's a reliable and sturdy choice for various pipe connections requiring durability although it's important to note the lower operating pressure compared to some other couplers.,
This PT Coupling part is proudly made in the USA.
