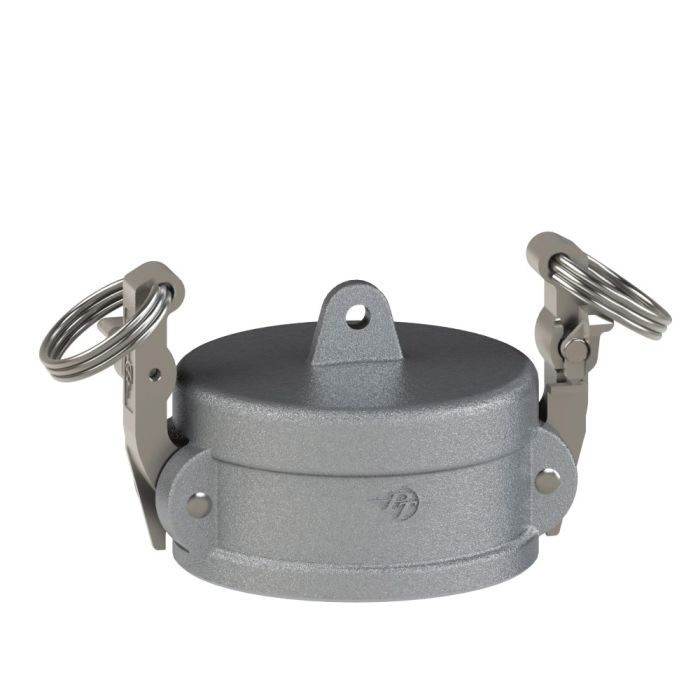

1001160L2 - Pt Coupling - 6" Part V Dust Cap Alum Sta-Lock Ii Ears - LJI Part: 60VSLIIAL
SKU
60VSLIIAL
SKU
60VSLIIAL
$154.68
| Brand | : Pt Coupling |
|---|---|
| Size | : 6 Inch |
| Type | : Dust Caps |
| Vendor Number | : 1001160L2 |
Short Description:
The PT Coupling 1001160L2 is a 6-inch Sta-Lok II aluminum dust cap with a Type V connection. It measures 10.16 inches in outer diameter and 2.76 inches in length, and features a 1.14-inch chain lug extension along with SLS 316 Stainless Steel cam arms that extend to an outer diameter of 16.26 inches. With a maximum operating pressure of 75 psi and Coast Guard ASTM 1122-87 approval, it is suited for protecting cam and groove fittings in agriculture, construction, oil and gas, mining, transportation, and railroad applications.
This PT Coupling part is proudly made in the USA.
Details
- Body Material: Aluminum
- Maximum Operating Pressure: 75 psi
- Outer Diameter (OD): 10.16 inches
- Overall Length (OAL): 2.76 inches
- Chain Lug Extension: 1.14 inches
- Extended Cam Arms Diameter: 16.26 inches
- Connection: 6-inch Type V
- Cam Arms: SLS 316 Stainless Steel (Sta-Lok II)
- Standard Approvals: Coast Guard ASTM 1122-87
