CF1000330 - Pt Coupling - 3" Aluminum Coupler- Coupler X Hose Shank Part C - LJI Part: CF300CAL
SKU
CF300CAL
SKU
CF300CAL
$14.74
| Brand | : Pt Coupling |
|---|---|
| Size | : 3 Inch |
| Type | : Part C |
| Material | : Aluminum |
| Vendor Number | : CF1000330 |

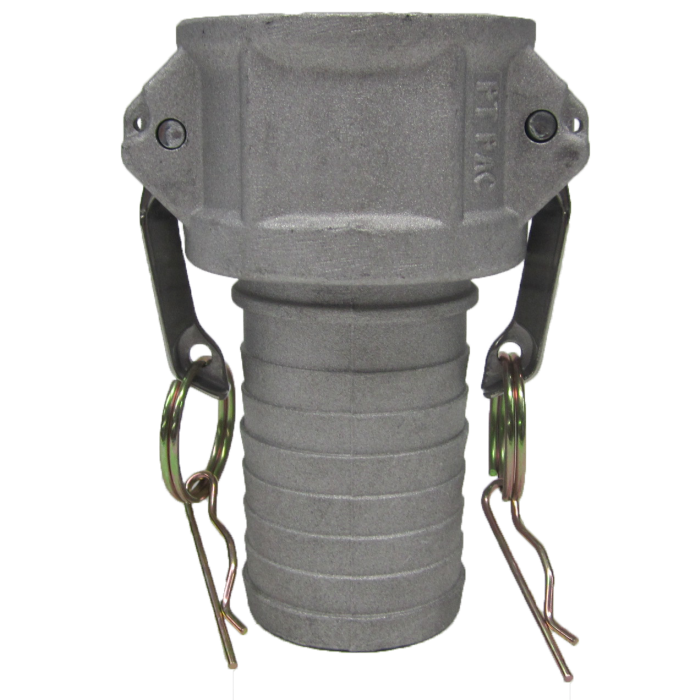

Aluminum part c coupler sized 3", coupler x hose shank. Rated to 125 psi at this size.
A coupler x hose shank connection in 3", made and broken by hand. The multi-barbed shank takes a center punch clamp or an interlocked ferrule or sleeve. Aluminum is light and economical with good abrasion resistance and fair corrosion resistance, which covers water, hydraulic oil, coolants, gasoline and petroleum.
- Size: 3"
- Type: Part C coupler
- Connection: coupler x hose shank
- Material: aluminum
- Maximum allowable working pressure: 125 psi
- Pressure rating is based on Buna-N seals below 100°F
- Multi-barbed hose shank works with center punch clamps or an interlocked ferrule or sleeve
- Cast, machined and assembled in the USA
- Assembled with solid pins
- Complies with Commercial Item Description A-A-59326D for quick disconnect couplings
- Not rated for compressed gas service, including air and steam
