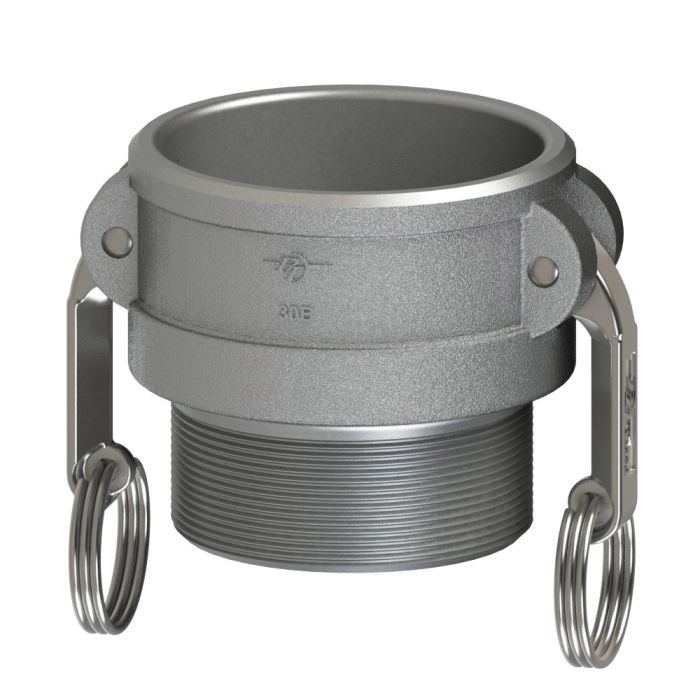

1400201 - PT Coupling 1/2 in Type B x 1/2 in MNPT, 316 Stainless Steel Coupler, - LJI Part: 1400201

Short Description: The PT Coupling Coupler is a high-quality component designed for secure connections in industrial applications. It features a Type B connection with 1/2 inch size on both ends, with one end having a male NPT thread for easy installation. Constructed from durable 316 Stainless Steel, this coupler offers excellent corrosion resistance and is well-suited for applications where chemical resistance is required. With dimensions of 0.56 inches ID, 1.82 inches OD, and 2.1 inches in length, it provides a reliable and leak-free connection between hoses or pipes. The coupler can handle a maximum operating pressure of 250 psi, making it suitable for a wide range of medium-pressure applications. It comes with additional information, including an exposed length of 1-1/4 inches and an extended OD of the cam arms up to 4.21 inches, which ensures ease of use during operations.,

This PT Coupling part is proudly made in the USA.
