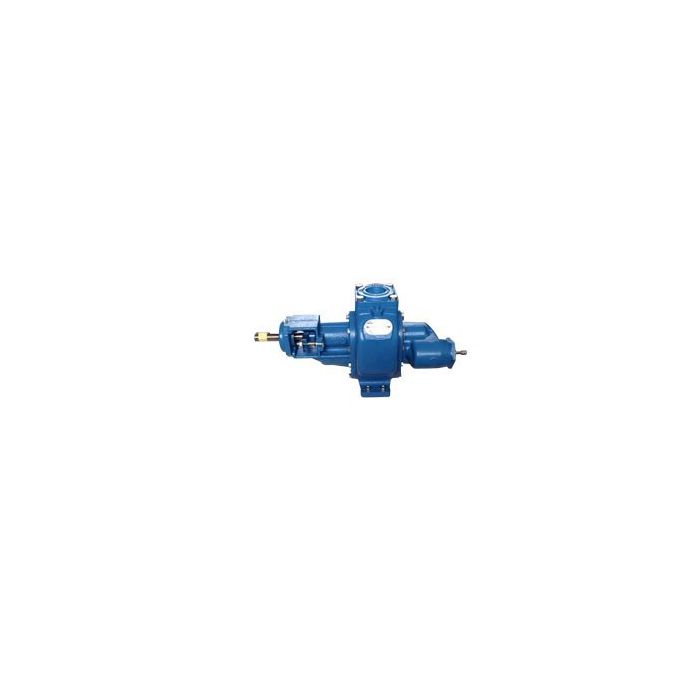

179PHBFRV - Ranger - 2-1/2 inch Helical Gear Pump - LJI Part: 179PHBFRV
SKU
179PHBFRV
SKU
179PHBFRV
$1,449.44
| Brand | : Ranger |
|---|---|
| Size | : 2-1/2 Inch |
| Type | : Pump |
| Material | : Cast Iron |
| Vendor Number | : 179PHBFRV |
Short Description:
The Ranger 179PHBFRV is a 2.5-inch Series 17 helical gear pump featuring outboard bearing design with flange ports and relief valve for tank trailer applications. This precision-built pump delivers up to 126 gallons per minute with heat-treated ductile iron gears providing silent, efficient operation. Designed to output 0.17 gallons per revolution at maximum speeds of 750 RPM, it utilizes four heavy-duty sleeve bearings supporting the pumping gears for extended service life in demanding fluid transfer operations.
Details
- Series: 17 (2.5-inch)
- Maximum Flow Rate: 126 gallons per minute
- Maximum Pressure: 125 PSI
- Maximum Speed: 750 RPM
- Displacement: 0.17 gallons per revolution
- Configuration: Packing pump with outboard bearing, flange ports, and relief valve
- Port Style: Flanged
