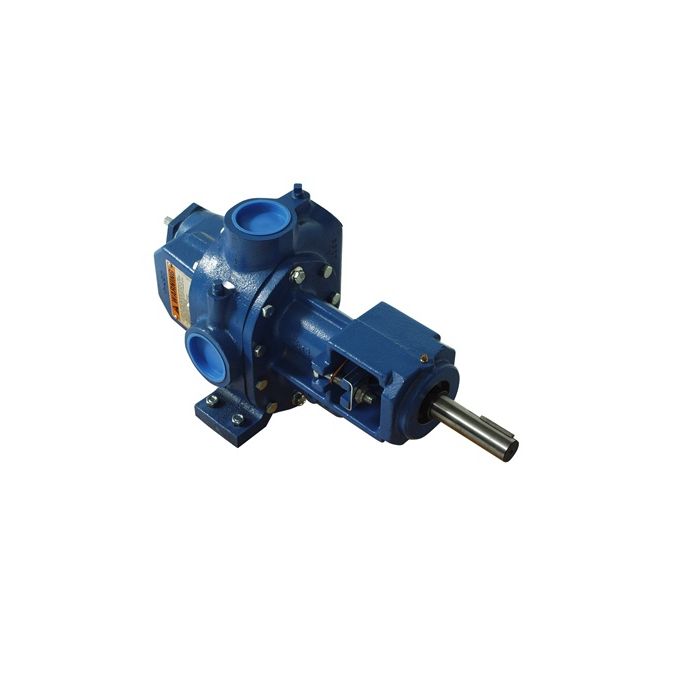

119PHBRV - Ranger - 2-inch Helical Gear Pump - LJI Part: 119PHBRV
SKU
119PHBRV
SKU
119PHBRV
$1,208.46
| Brand | : Ranger |
|---|---|
| Size | : 2 Inch |
| Type | : Pump |
| Material | : Cast Iron |
| Vendor Number | : Roper 3611HBRV-3A |
Short Description:
The Ranger 119PHBRV is a 2-inch Series 11 helical gear pump featuring bronze bushings and steel shafts with a relief valve for tank trailer applications. This precision-built pump delivers up to 80 gallons per minute with heat-treated ductile iron gears providing silent, efficient operation. Designed to output 0.11 gallons per revolution at maximum speeds of 750 RPM, it handles diverse liquids from oil to molasses with four heavy-duty sleeve bearings supporting the pumping gears for extended service life.
Details
- Series: 11
- Maximum Flow Rate: 80 gallons per minute
- Maximum Pressure: 125 PSI
- Maximum Speed: 750 RPM
- Displacement: 0.11 gallons per revolution
- Bushing Material: Bronze
- Shaft Material: Steel
- Configuration: Packing pump with outboard bearing and relief valve
- Port Style: 2-inch NPT
