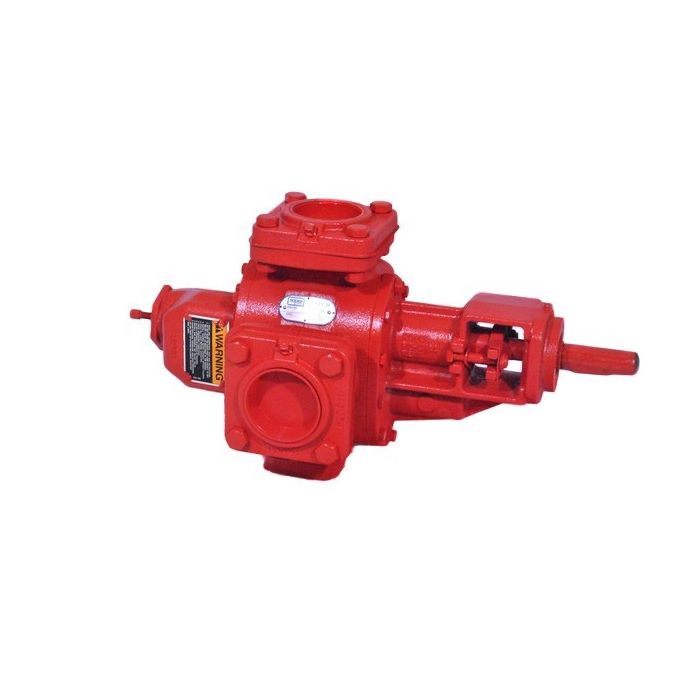

3622XHBFRV-17647 - Roper - 3-inch, 0.22 Gal/Rev, eX Pump - LJI Part: 3622XHBFRV-17647
| Brand | : Roper |
|---|---|
| Size | : 3 Inch |
| Type | : Pump |
| Material | : Cast Iron |
| Vendor Number | : 3622XHBFRV-17647 |
The Roper 3622XHBFRV-17647 is an eX Series helical gear pump engineered for extreme conditions with multi-viscous and abrasive fluid handling capabilities. This Size 22 pump features hardened iron gears and wear-resistant internals that deliver extended service life compared to standard 3600 series pumps. The XHBFRV configuration includes flanged 3 inch NPT ports, outboard ball bearing support, and an integrated relief valve for overpressure protection. With a theoretical displacement of 22 gallons per 100 revolutions and triple lip seal with packing backup, this pump tolerates extended dry running and hydraulic shock while maintaining reliable sealing. The eX Series design handles everything from thin petroleum condensate to thick crude oil and abrasive fluids in tank trailer applications.
- Theoretical Displacement: 22 gallons per 100 revolutions (83.3 liters per 100 revolutions)
- Port Size: 3 inches NPT flanged
- Port Orientation: 90 degree right angle ports
- Maximum Pressure: 125 PSI
- Maximum Flow Rate: 165 GPM
- Seal Type: Triple Lip Seal with Packing Backup
- Configuration: Flanged ports with outboard bearing and relief valve
- Gear Material: Hardened iron
- Shaft Material: Alloy Steel
- Housing Material: Cast iron
