SV914MSM - Betts - 4" Steel Sliding Gate Valve Metal To Metal Seat Ttma Flg X Trd - LJI Part: SV914MSM
SKU
SV914MSM
SKU
SV914MSM
$241.87
| Brand | : Betts |
|---|---|
| Size | : 4 Inch |
| Type | : Valves |
| Material | : Steel |
| Vendor Number | : SV914MSM |

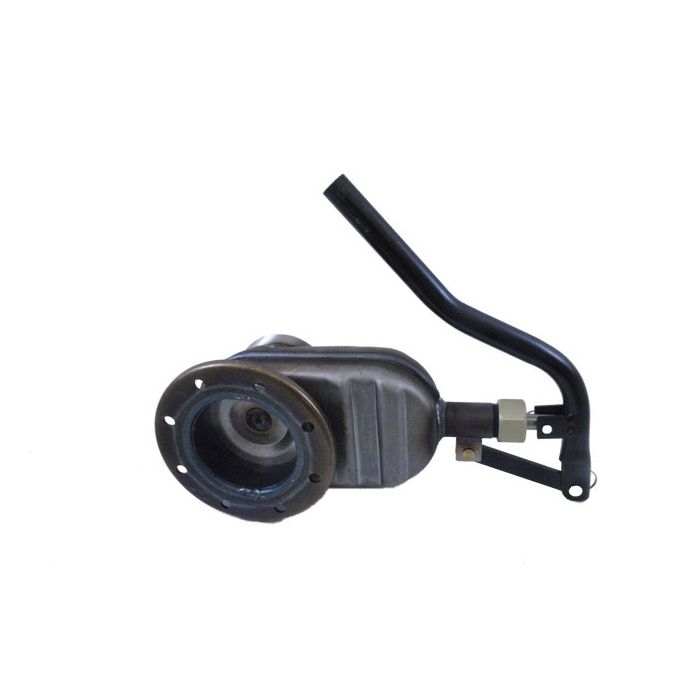

The Betts SV914MSM is a 4-inch sliding gate valve with a steel body and 316 stainless steel stem and gate, metal-to-metal seat, connecting a TTMA flange to 4-inch threaded pipe.
The Betts SV914MSM Sliding Valve is an economical, manually operated external stop valve that provides a quick open or close function. The 316 stainless steel gate offers premium corrosion resistance, and the adjustable packing nut with woven PTFE-infused packing allows for easy stem adjustments. The metal-to-metal seal offers advantages for many applications but is susceptible to wear and scratches; a replaceable o-ring seat sliding valve is available if a maintainable seal is required. This valve connects a TTMA flange to 4-inch threaded pipe and features a steel body with a 316 stainless steel stem and gate.
Technical Specs List
- Size: 4 inches
- Connection: TTMA Flange x 4-inch Threaded Pipe
- Body Material: Steel
- Stem and Gate Material: 316 Stainless Steel
- Seat Type: Metal-to-metal
- Weight: 14.1 pounds
- Flange Outer Diameter: 7.13 inches
- Flange Bolt Circle: 5.88 inches
- Bolt Holes: 8 holes, 0.44 inches diameter
- Maximum Allowable Working Pressure: 50 psi (3.4 bar)
- Minimum Burst Pressure: 200 psi (13.8 bar)
- Temperature Range: -40F to 500F (-40C to 260C)
