STX3E - Blackmer - 3-inch SST Sliding Vane Pump with Mounting Bracket - LJI Part: STX3E
| Brand | : Blackmer |
|---|---|
| Size | : 3 Inch |
| Type | : Pump |
| Material | : Stainless Steel |
| Vendor Number | : STX3E |

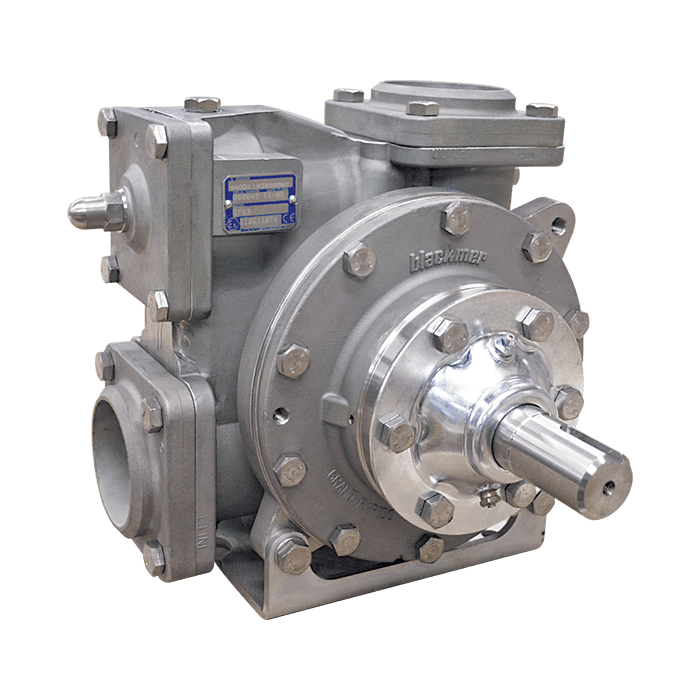

The Blackmer STX3E is a 316 stainless steel truck-mounted sliding vane pump designed for high-volume loading and off-loading applications involving solvents, chemicals, sulfates, vegetable oils, urea and acids. This self-priming pump features 3-inch port sizes and a versatile mounting bracket for enhanced installation flexibility. With flow rates from 85 to 250 gpm, the STX3E delivers double-ended shaft operation for clockwise or counterclockwise rotation, external ball bearings, non-metallic Duravanes, and Blackmer chemical mechanical seals. The pump offers extended dry run capability, line-stripping performance, and an adjustable relief valve for pressure protection.
- Flow Rate Range: 85 to 250 gpm (322 to 946 L/min)
- Port Size: 3-inch NPT threaded
- Maximum Differential Pressure: 125 psi (8.6 bar)
- Maximum Working Pressure: 175 psi (12.1 bar)
- Speed Range: 300 to 800 RPM
- Viscosity Range: 0.2 to 4,250 cP
- Temperature Range: -25F to 240F (-32C to 115C)
- Construction Material: 316 stainless steel
- O-Ring Material: Buna-N, FKM type
- Vanes: Non-metallic Duravanes
- Mounting: Versatile mounting bracket
