Scully Overfill Protection Systems for Tank Trailers: Features, Benefits, and System Options
Why Overfill Protection Matters
Overfilling a tank trailer can result in product spills, environmental damage, safety hazards, regulatory violations, and costly downtime. Overfill protection systems are designed to automatically monitor product levels during loading and stop the loading process before a compartment reaches a dangerous level. Scully has been a global leader in overfill prevention technology for decades and is widely recognized as the industry standard for petroleum, chemical, aviation, food-grade, and specialty liquid transportation. [scully.com]
What Is a Scully Overfill Protection System?
A complete Scully overfill protection system typically consists of:

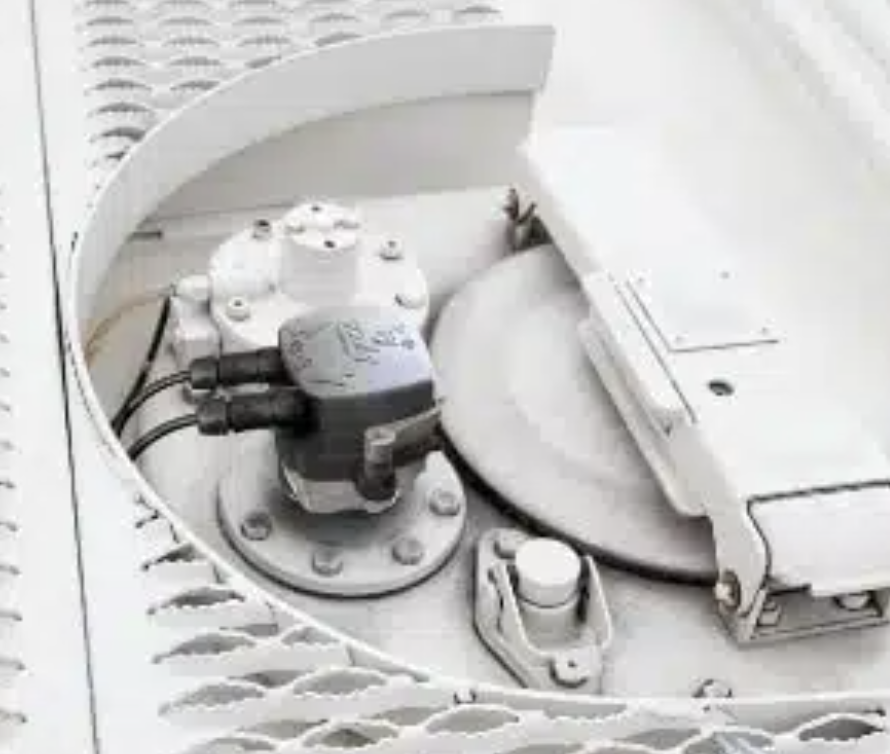

- Overfill sensors installed in tank compartments
- Vehicle-mounted monitor/controller
- Socket, plug, and cable connection system
- Loading rack monitor
- Ground verification system (optional)
- Retained product monitoring (optional)
The system continuously verifies sensor functionality and automatically shuts down loading when a high-level condition or fault is detected. Scully's patented Dynacheck® technology continuously self-checks the circuit to ensure fail-safe operation. [scully.com]
Types of Scully Overfill Protection Systems

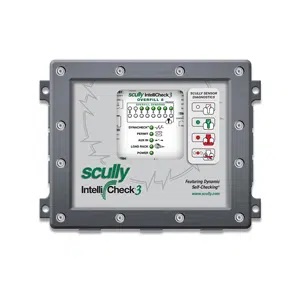

1. IntelliCheck® 3 Onboard Overfill Prevention System
The IntelliCheck® 3 is Scully's flagship onboard tank trailer overfill prevention system and is commonly found on petroleum and chemical trailers throughout North America. [scully.com]
Key Features
- Monitors up to 8 compartments
- Compatible with 2-wire and 5-wire optic sensors
- Retained product monitoring
- Individual sensor diagnostics
- Dynacheck® continuous self-testing
- Detects sensor opens, shorts, and wiring faults
- Loading shutdown within one-half second
- Driver acknowledgement required when retained product is present
- Five-year sensor warranty available on system kits [scully.com]
Benefits
- Prevents costly product spills
- Reduces troubleshooting time through advanced diagnostics
- Helps prevent cross-contamination and product mixing
- Improves terminal loading efficiency
- Supports regulatory compliance
- Minimizes trailer downtime [scully.com]
2. ST-15 Single Point Overfill Prevention Controller
The ST-15 is designed for single-compartment applications such as aviation fuel trucks, railcars, chemical trailers, and specialty transport equipment. [scully.com]
Key Features
- Single-compartment monitoring
- Supports thermistor and 2-wire optic sensors
- Automatic shutdown on overfill
- Continuous self-checking circuitry
- Hazardous location approvals
- Compatible with portable sensing equipment [scully.com]
Benefit
- Simple and dependable
- Cost-effective solution
- Easy installation
- Excellent for specialized loading operations [scully.com]
Types of Scully Sensors
The sensor is the heart of every overfill system. Scully offers several sensor technologies depending on the application.
1. Two-Wire Optic Sensors
The most common sensor type used on modern petroleum tank trailers. These sensors use infrared light to detect liquid contact. [scully.com]
Features
- Fast response
- Independent sensor monitoring
- Retained product detection capability
- Compatible with IntelliCheck® 3
- Continuous self-testing [scully.com]
Benefits
- High reliability
- Minimal maintenance
- Excellent product compatibility
- ndustry-standard technology [scully.com]
2. Five-Wire Optic Sensors
Designed for advanced diagnostics and enhanced fault detection. Five-wire sensors provide additional information to the control monitor. [scully.com], [jmesales.com]
Features
- Instant-on operation
- Advanced fault diagnostics
- Detects wiring opens and shorts
- Compatible with Intellitrol®, ST-35, and IntelliCheck® systems
- Dynacheck® self-monitoring [scully.com]
Benefits
- Faster troubleshooting
- Reduced maintenance costs
- Improved loading reliability
- Enhanced system visibility [scully.com
3. Thermistor Sensors
A proven technology often found on legacy trailers and specialized applications. Thermistor sensors detect liquid through temperature changes. [scully.com]
Features
- Proven level detection technology
- Compatible with ST-15 and ST-35 systems
- Suitable for multiple liquid types
- Long service life
- Virtually maintenance-free operation [scully.com]
Benefits
- Extremely durable
- Reliable operation
- Ideal for retrofit applications
- Cost-effective solution for older fleets [scully.com]
Additional Safety Features Available with Scully Systems
Retained Product Monitoring
Scully IntelliCheck® 3 can detect residual product remaining in a compartment before loading begins. This feature helps prevent accidental product contamination and mixing. [scully.com]
Benefits
- Prevents product cross-contamination
- Improves quality control
- Reduces costly product disposal events
- Enhances fleet loading procedures
Ground Verification Systems
Static electricity is a major hazard when loading flammable liquids. Scully grounding systems verify the vehicle is properly grounded before loading begins. [ifcinflow.com], [scully.com]
Benefits
- Reduces fire and explosion risk
- Ensures safe loading conditions
- Improves terminal compliance

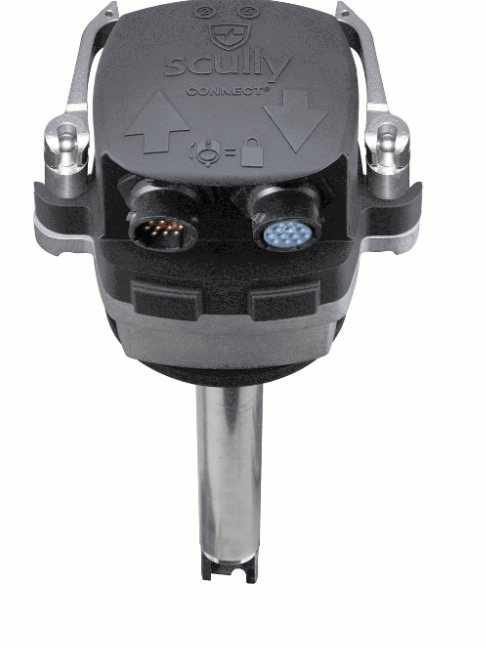

Scully Two-Wire & Five-Wire Quick Connect Overfill Prevention Sensors
One of the latest advancements in tank trailer overfill protection is Scully's Quick Connect Sensor technology. These sensors are designed to simplify installation, reduce maintenance time, and improve fleet uptime while maintaining the industry's highest safety standards. They are available in both Two-Wire and Five-Wire configurations for compatibility with existing Scully overfill prevention systems. [scully.com]
What Are Quick Connect Overfill Prevention Sensors?
Quick Connect sensors eliminate much of the traditional hard-wiring associated with overfill sensor installation. The sensor connects through a sealed plug-and-play connector, making replacement and servicing significantly faster than conventional sensor installations.
These sensors are designed for use in petroleum, chemical, aviation, and bulk liquid transport applications where reliability and minimal downtime are critical. [scully.com]
Two-Wire Quick Connect Optical Sensors
The Two-Wire Quick Connect Sensor utilizes Scully's proven optical sensing technology, which detects liquid at the preset high-level point using infrared optics.
Key Features
- Plug-and-play Quick Connect design
- Compatible with existing 2-wire overfill systems
- No warm-up time required
- Continuous Dynacheck® monitoring
- Fast response to liquid contact
- Hazardous-location approved
- Resistant to vibration, shock, weather, and road conditions
- Suitable for petroleum and refined fuel products [scully.com]
Benefits
- Faster installation and replacement
- Reduced trailer downtime
- Lower maintenance costs
- Improved fleet reliability
- Proven compatibility with loading terminals nationwide
- Reliable overfill prevention in demanding environments
For fleets operating hundreds of tank trailers, reducing sensor replacement time from hours to minutes can significantly improve equipment utilization and maintenance efficiency.
Five-Wire Quick Connect Optical Sensors
The Five-Wire Quick Connect Sensor provides all the advantages of two-wire optical sensing while adding advanced diagnostics and troubleshooting capabilities.
These sensors are commonly paired with IntelliCheck® 3 and Intellitrol® systems where fleet managers and maintenance departments require enhanced fault detection and operational visibility. [scully.com],
Key Features
- Quick Connect plug-and-play installation
- Advanced sensor diagnostics
- Detects wiring opens and shorts
- Identifies specific sensor faults
- Instant-On™ operation
- Continuous Dynacheck® fail-safe monitoring
- Compatible with IntelliCheck® and Intellitrol® systems
- Fast re-permit after liquid level drops below sensor height [scully.com]
Benefits
- Faster troubleshooting
- Reduced maintenance labor
- Less loading rack delay
- Improved diagnostic accuracy
- Reduced out-of-service time
- Enhanced fleet safety and compliance
The advanced diagnostic capabilities help maintenance personnel identify exactly which compartment or sensor is causing a fault, eliminating unnecessary troubleshooting and reducing repair costs.
Quick Connect Advantages Over Traditional Sensors
| Feature | Traditional Sensors | Quick Connect Sensors |
|---|---|---|
| Replacement Time | Longer | Significantly Faster |
| Wiring Complexity | Higher | Lower |
| Maintenance Downtime | Greater | Reduced |
| Troubleshooting | Manual Process | Simplified |
| Fleet Availability | Lower | Higher |
| Sensor Replacement Cost | Higher Labor Cost | Lower Labor Cost |
Why Tank Trailer Fleets Choose Scully
Whether operating petroleum trailers, chemical tankers, aviation refuelers, or specialty liquid transport equipment, Scully remains the preferred overfill protection solution because of:
- Proven industry reliability
- Continuous self-checking technology
- Broad compatibility with terminals
- Advanced diagnostics
- Product contamination prevention
- Superior safety performance
- Long sensor life and warranty coverage [scully.com],
Final Thoughts
Overfill protection is not simply a regulatory requirement—it's a critical component of tank trailer safety, risk management, and operational efficiency. Scully's IntelliCheck® 3, Intellitrol® 2, ST-35, ST-15, and comprehensive range of optic and thermistor sensors provide solutions for virtually every tank trailer application. By investing in a properly maintained Scully overfill system, fleets can protect employees, customers, equipment, the environment, and their bottom line.
